Instrument Transformers are transformers that convert high currents or voltages into measurable and standardized currents or voltages. These are then proportional and in-phased to the primary signal. They are intended to supply electrical measuring instruments, meters, relays or other electrical devices. Furthermore, the connected measuring and protective devices are electrically insulated against live parts.

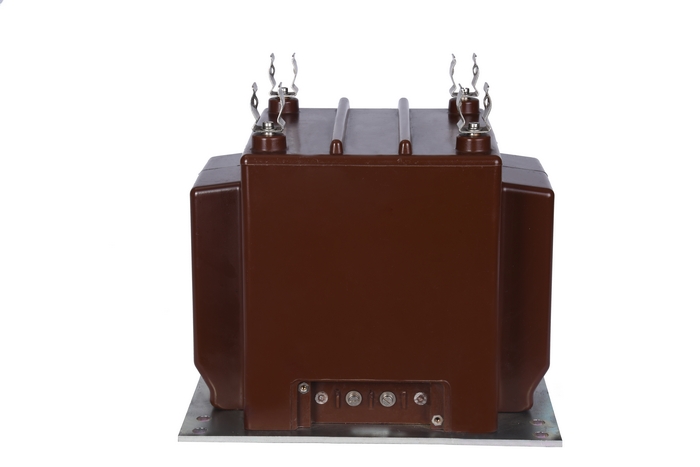

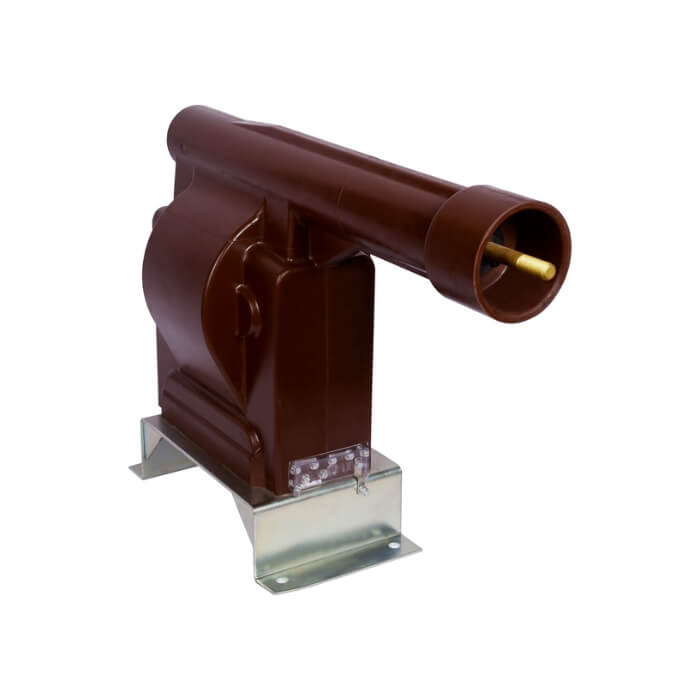

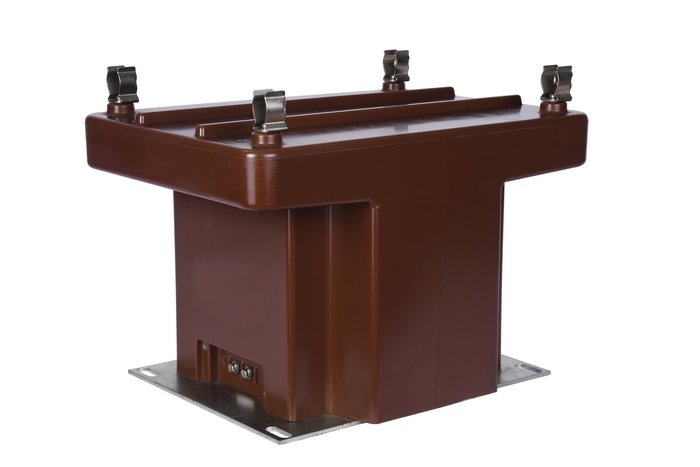

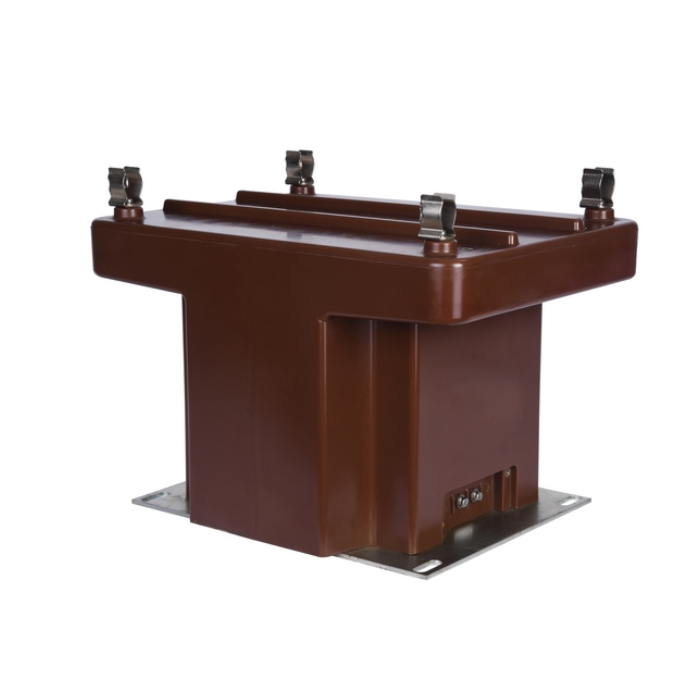

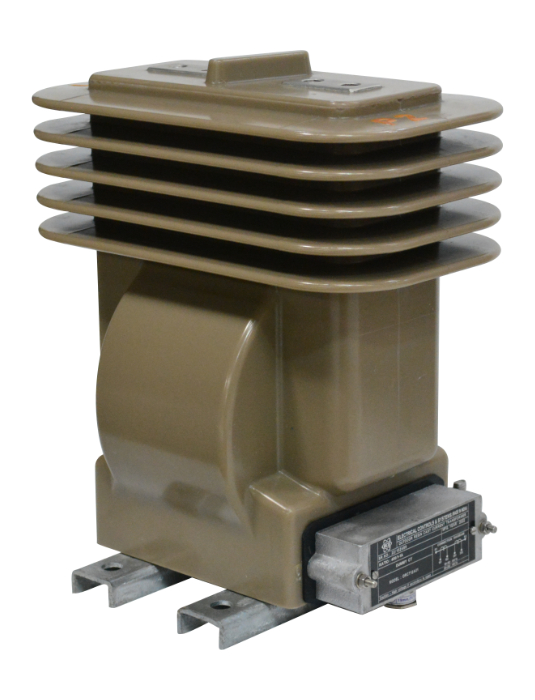

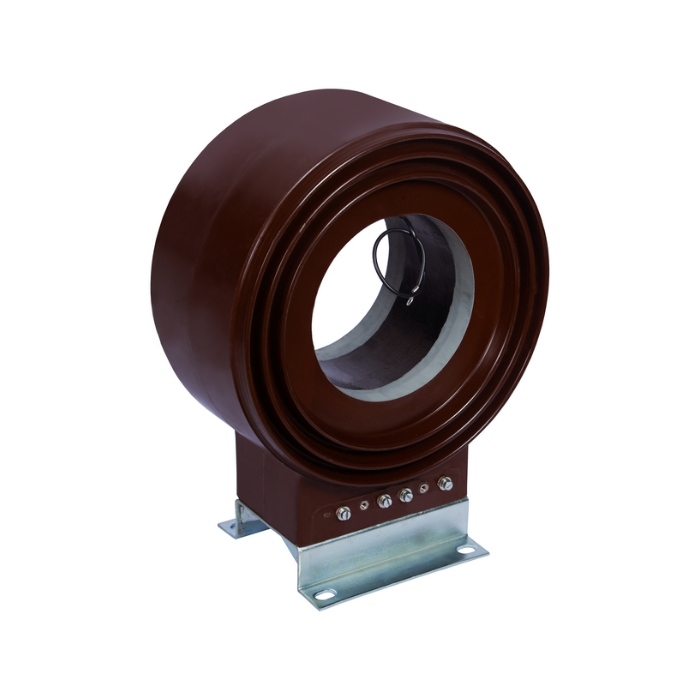

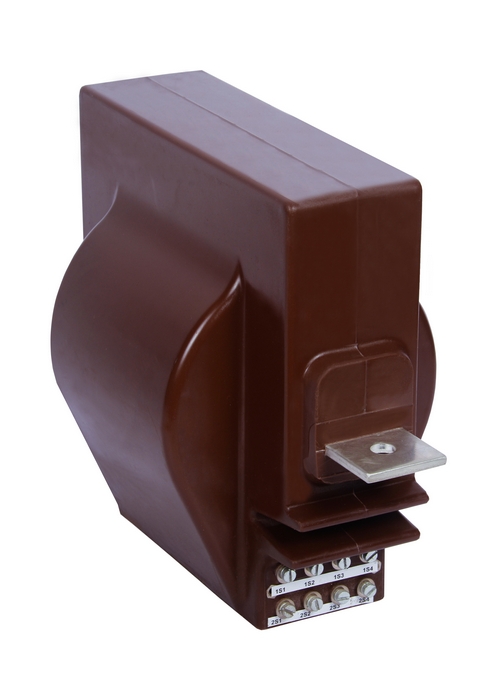

Current transformer
Rating or Range :
| Maximum System Voltage |
: |
3.6kV ~ 36kV |
| Rated Primary Current |
: |
5A to 5000A |
| Secondary Current |
: |
1A or 5A or As per customer requirement |
| Secondary Burden |
: |
2.5 to 20 VA or As per customer requirement |
| Accuracy Class |
: |
Metering: 0.2s, 0.2, 0.5, 0.5s, 1.0 or as per IS or IEC or ANSI
Protection: 5P10, 5P20, 10P10 or as per IS or IEC or ANSI
|
| Instrument Safety Factor |
: |
Less than 5 |
| Rated Frequency |
: |
50Hz, 60Hz |
| Maximum Insulation level |
: |
36/70/170 kV |

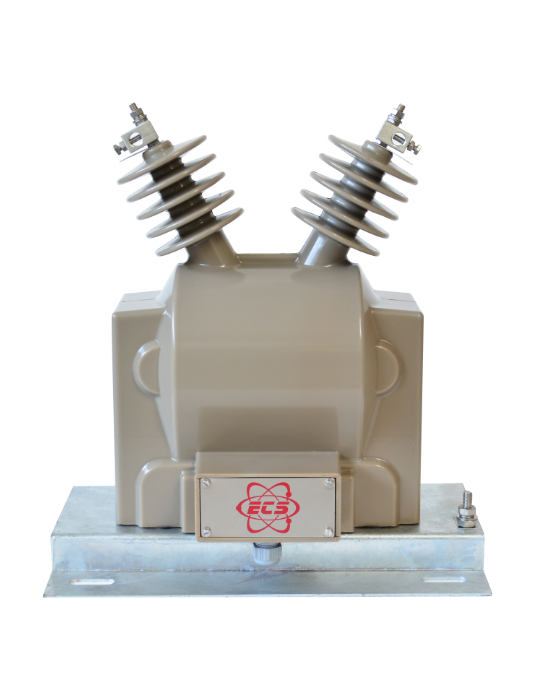

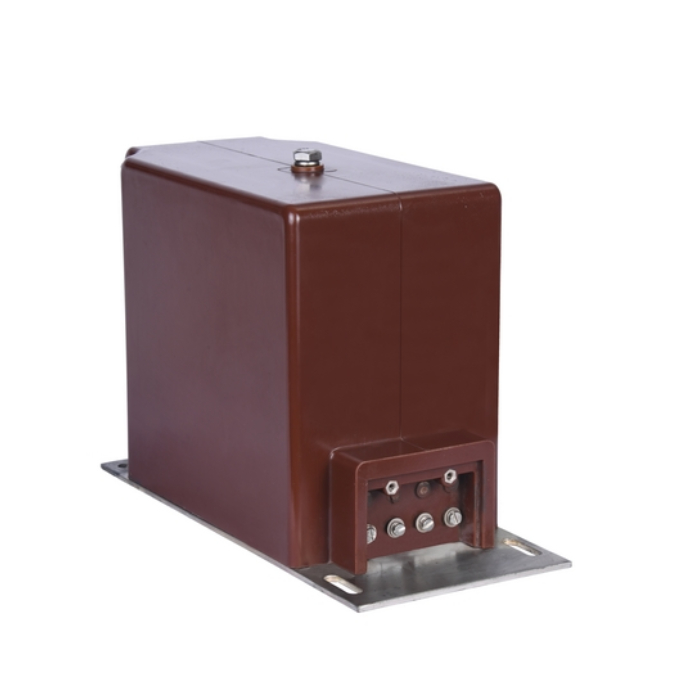

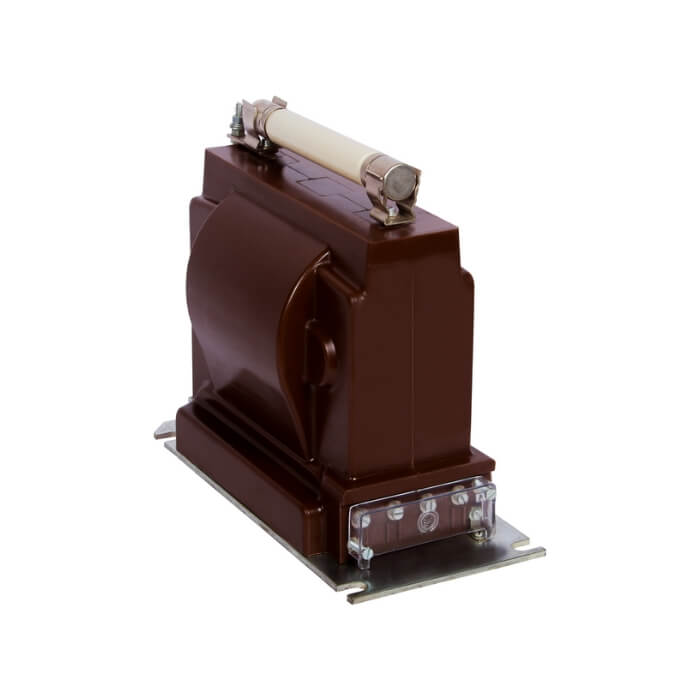

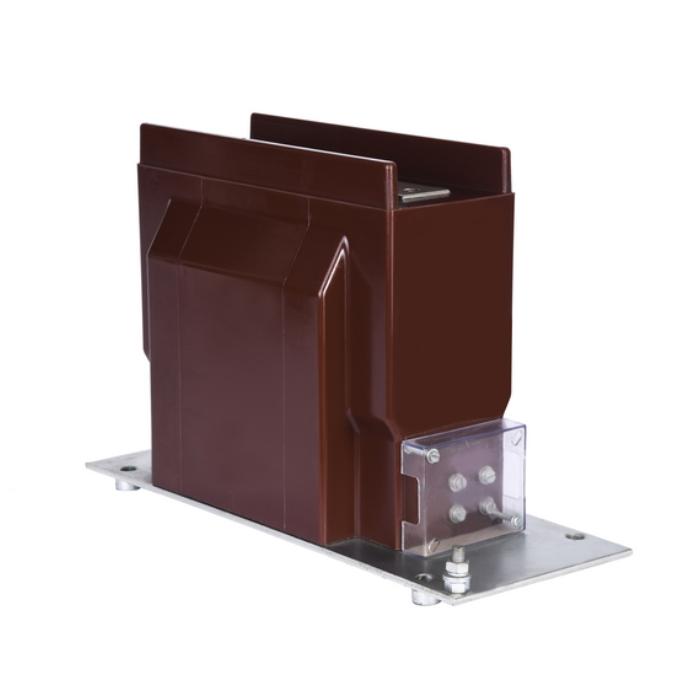

Voltage Transformer
Rating or Range :
| Maximum System Voltage |
: |
3.6kV ~ 36kV |
| Rated Frequency |
: |
50Hz, 60Hz |
| Maximum Insulation level |
: |
36/70/170 kV |
| Rated Continuous Thermal Current |
: |
120%, 150%, 200% |
| Rated accuracy Classes |
: |
Metering: 0.2, 0.5, 1.0, 3.0.
Protection: 3P, 5P (Open Delta / Star Star) |
