Pad Mounted Transformer Manufacturer in India

Pad-Mounted Transformer

Reliable Outdoor Power Distribution.
Durable, ANSI/IEEE-compliant pad-mounted transformers built for safe and efficient power delivery.

Pad-Mounted Transformer

Reliable Outdoor Power Distribution.
Durable, ANSI/IEEE-compliant pad-mounted transformers built for safe and efficient power delivery.

Overview

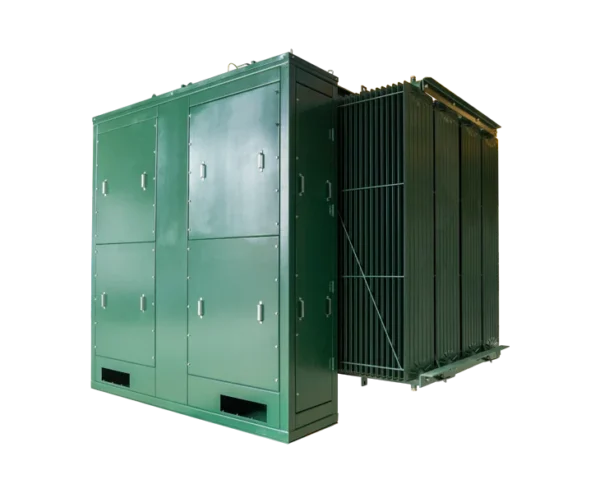

ECS offers three-phase pad-mounted transformers designed for outdoor installations. These transformers provide safe, reliable power distribution for commercial, industrial, and institutional loads. Built to meet ANSI/IEEE standards, our pad-mounted transformers are engineered for durability, weather resistance, and easy maintenance, making them ideal for a wide range of applications.

Key Features

Reliable outdoor power distribution

Moisture Protection

Low maintenance and high durability

Maintenance-Free

Safe, tamper-resistant design

Environmentally Friendly

Fully customizable based on application

Compact & Aesthetic

Compliant with global standards for quality and safety

Applications

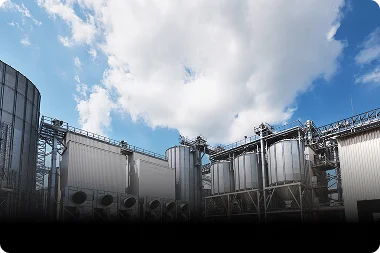

Commercial and industrial facilities

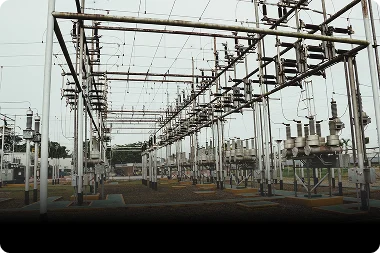

Institutional power distribution

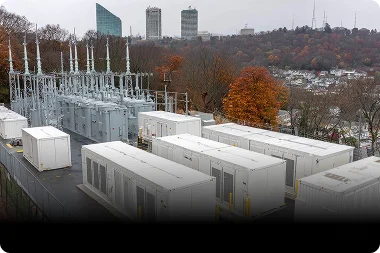

Renewable energy substations

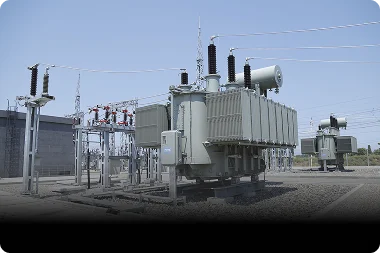

Outdoor power systems requiring robust, tamper-resistant transformers

Technical Specifications

Parameter	Specification
Power Range	Up to 15 MVA
Voltage Rating	Up to 34.5 kV
Frequency	50/60 Hz
Winding Material	Copper or Aluminum
Cooling Method	Oil-immersed (ONAN / KNAN)
Design Compliance	ANSI/IEEE standards
Configuration	Two-winding to five-winding
Optional Features & Accessories	Wide range of design efficiencies to match customer applications and DOE efficiency standards 50/60 Hz frequency options Type II insulating mineral oil High fire-point fluids (silicone, hydrocarbon, vegetable-based) Average winding temperature rise options: 55°C and 55°C/65°C Copper or aluminum windings Dual high-voltage rating options Internal expulsion fuse protection Current-limiting fuse options Internal oil-immersed partial-range Radiator fitted or corrugated tank design Current-limiting fuses Bayonet fuse holders with or without flapper options Dry-well fuseholders (non-loadbreak and loadbreak) Internal oil switch (radial or loop) Internal under-oil surge arresters Low-voltage molded-case circuit breaker Seismic Zones III and IV compliance Stainless steel tank and cabinet construction Custom color options RUS-approved design Compliance with Canadian Standards (CSA) HV – Dead/Live bushing
