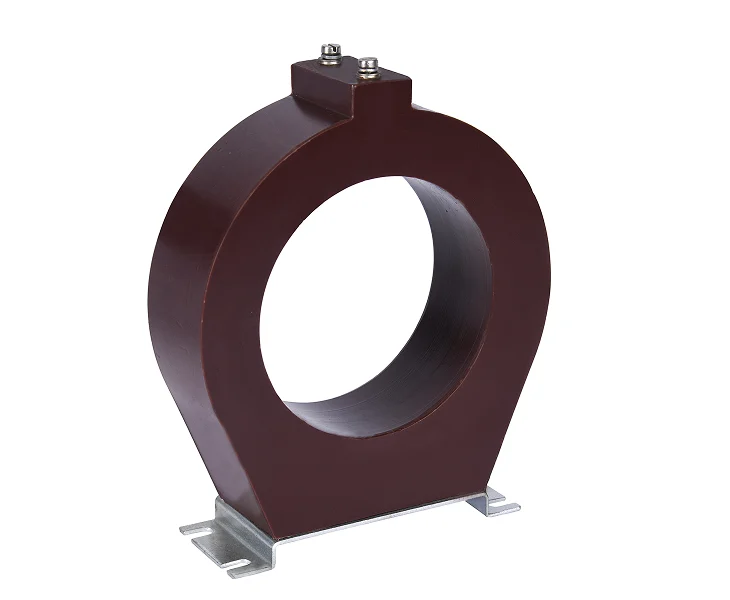

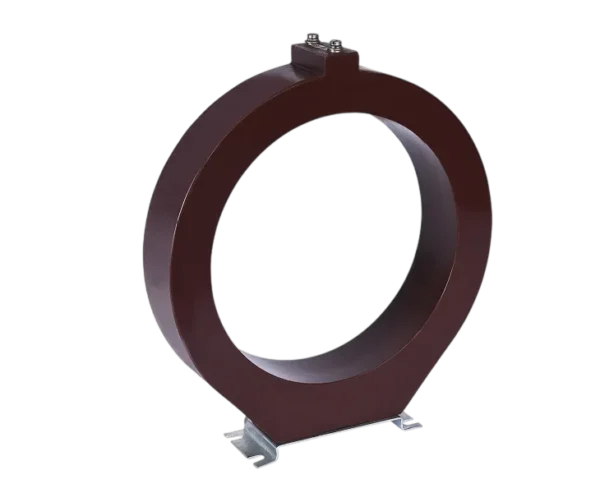

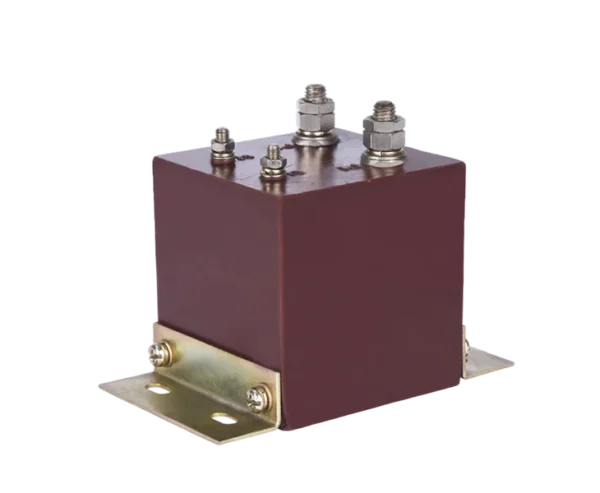

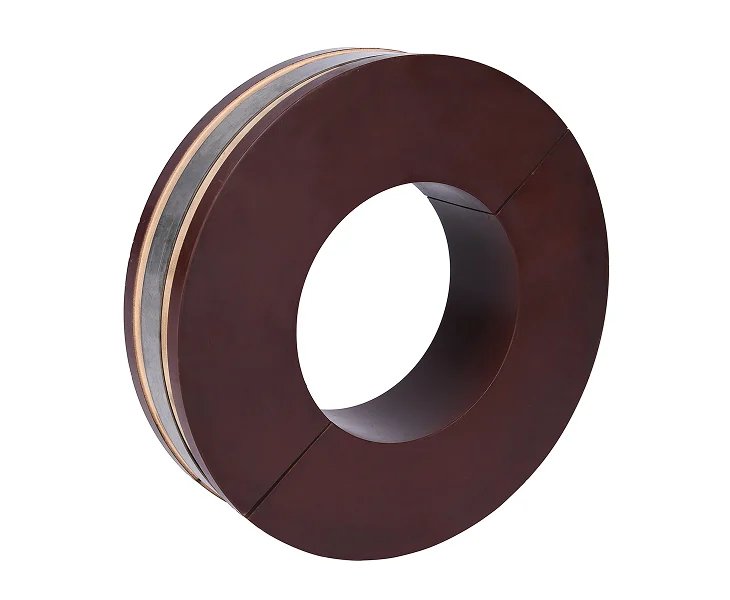

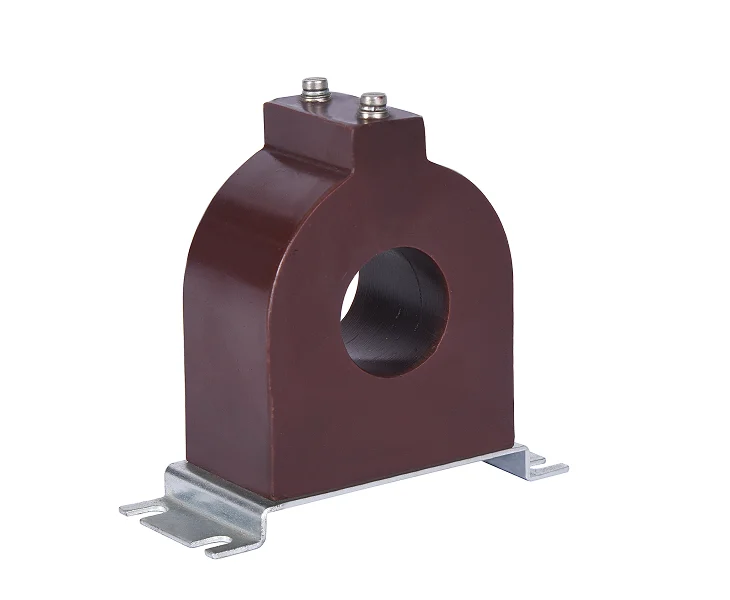

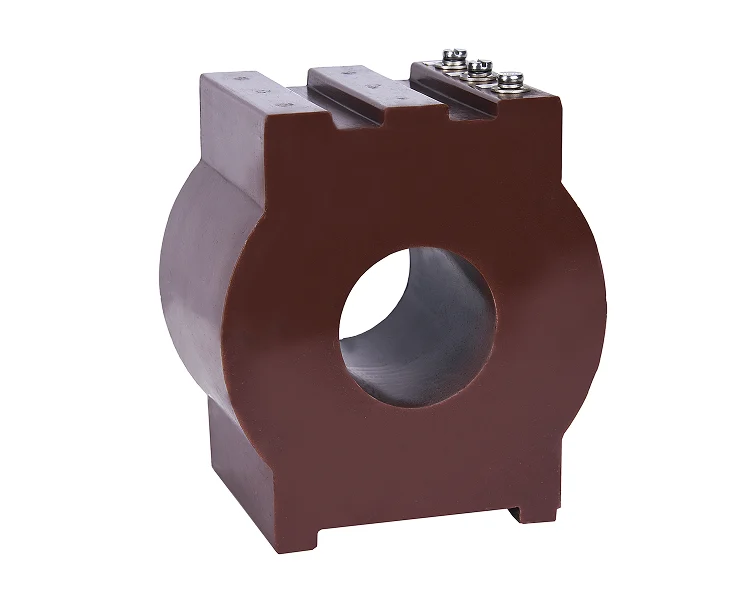

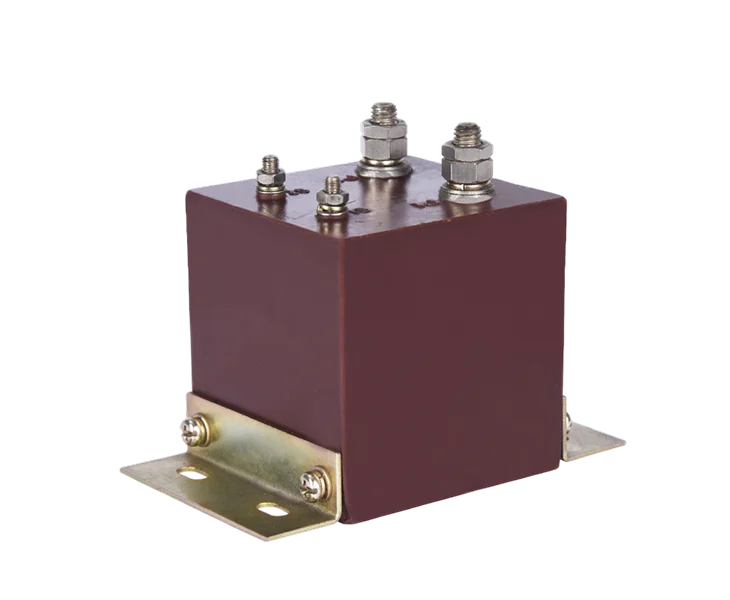

Resin Cast CTs feature windings encapsulated in resin, providing exceptional electrical insulation and mechanical protection. These transformers are designed to perform reliably even in the harshest environmental conditions, making them an ideal choice for electrical distribution, metering, and protection systems. Special Application CT: CBCT, Summation CT, Auxiliary CT, etc
| Parameter | Value |
|---|---|
| Type | Wound / Ring / Rectangular |
| Finishing | Insulated / Epoxy Resin |
| Highest Voltage | 1.1 kV |
| Rated Insulation Level | 1.1 / 4 kV |
| Rated Frequency | 50/60 Hz |
| Rated Primary Current | Up to 35,000 A |
| Rated Secondary Current | 5A, 1A, 2A, 0.577A |
| Accuracy Class | 0.1, 0.2s, 0.2, 0.5s, 0.5, 1, 3, 5 |
| Instrument Safety Factor | ≤ 5 & 10 (based on class) |
| Rated Burden (VA) | Up to 50 VA |
| Protection Class | 5P or 10P |
| Accuracy Limit Factor (ALF) | 5 to 30 |
| Special Protection (PS/PX) | VK ⇒ As per technical specs |
| Number of Cores | 1–5 |
| Insulation Class | A, E, B, F, H |
| Applicable Standards | IS, IEC, ANSI |
