Oil To Oil Bushings

Oil to Oil Bushing – 1

Oil To Oil Bushings

Overview

Our Oil Impregnated Paper (OIP) bushings are engineered for oil-to-oil applications in transformer cable box, providing reliable insulation and stable performance under demanding operating conditions. With advanced design capabilities and strong manufacturing expertise, we offer extensive customisation options to match unique transformer specifications, installation requirements, and project standards.

Key Features

Built to handle horizontal/vertical storage without risking structural integrity.

Precision-designed condenser core for well-distributed radial and axial electric field grading.

Accelerated delivery schedules are ensured through efficient production methods.

Solid conductor design to prevent any oil exchange between the transformer and cable box.

Low tan delta, pd free insulation setup ensures dependable long-term operation.

Integrated external test tap enabling easy testing access from outside the transformer.

Highly adaptable design options, including BCT provision, flange selection, and adjustable transformer-end length.

Viton-based sealing system ensures strong, long-lasting oil sealing.

Custom high-voltage terminal options are supplied upon request.

Applications

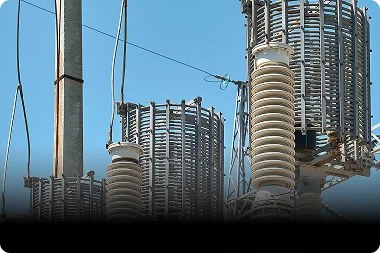

Applied in substations, switchyards, and industrial power setups

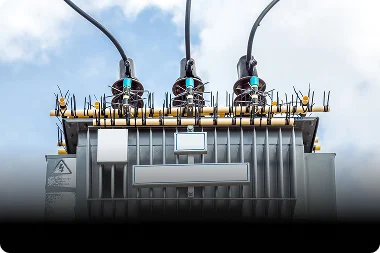

Used across power transformers

Suitable for HV and EHV electrical systems

Technical Specifications

Parameter	Specification
Rated Voltage	Up to 245 kV
Rated Current	3150 A*
Insulation	Oil-impregnated paper
Type	Oil-Oil
Standard	IEC-60137:2017
Conductor	Solid conductor

* tailored made customization upon request
