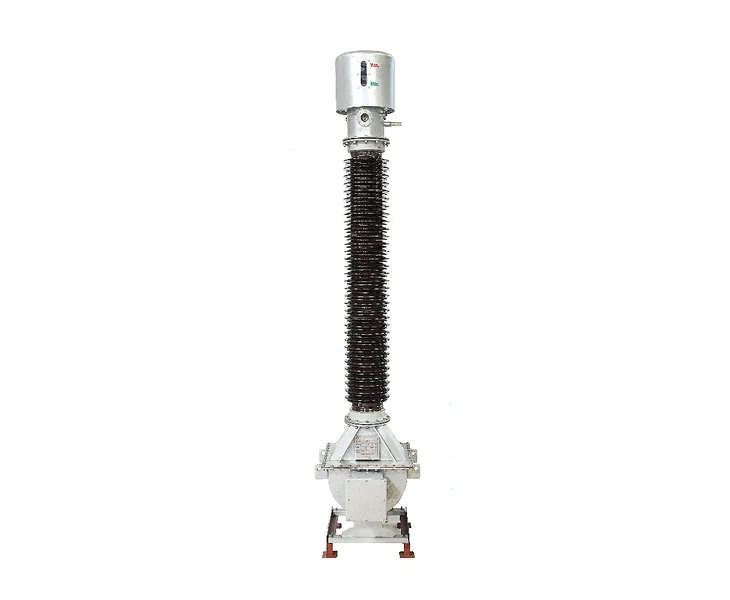

The Inductive Voltage Transformer (IVT) is engineered to provide accurate voltage measurement and protection for high-voltage power networks. With oil-impregnated paper insulation, capacitive grading, and hermetically sealed construction, it guarantees long-lasting performance in demanding outdoor environments. NABL-certified testing ensures compliance with international standards, making it a trusted choice for utilities and industrial installations.
| Parameter | Specification |
|---|---|
| Rated Voltage | Up to 220 kV |
| Accuracy Class | 0.2 / 0.5 (Metering), 3P (Protection) |
| Impulse Withstand Voltage | 1050 kVp (Type Tested) |
| Insulation Systems | Paraffinic or Naphthenic OIP |
| Operating Temperature | -40°C to +50°C |
| Frequency Range | 50/60 Hz |
| Voltage Factor | 1.2 Continuous, 1.5 for 30s |
| Creepage Distance | 31 mm/kV (IEC standard for high-pollution zones) |
