Overview

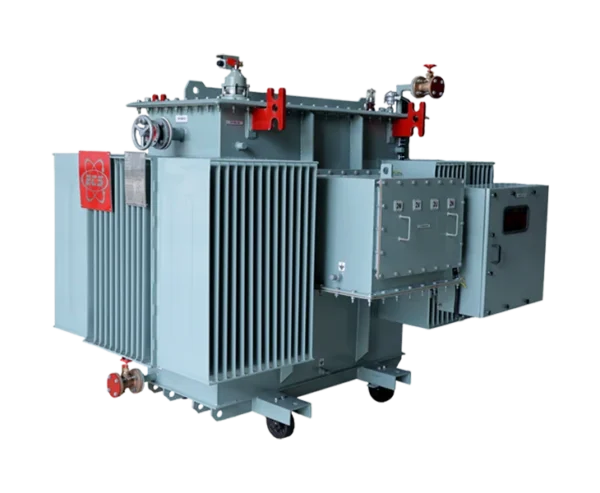

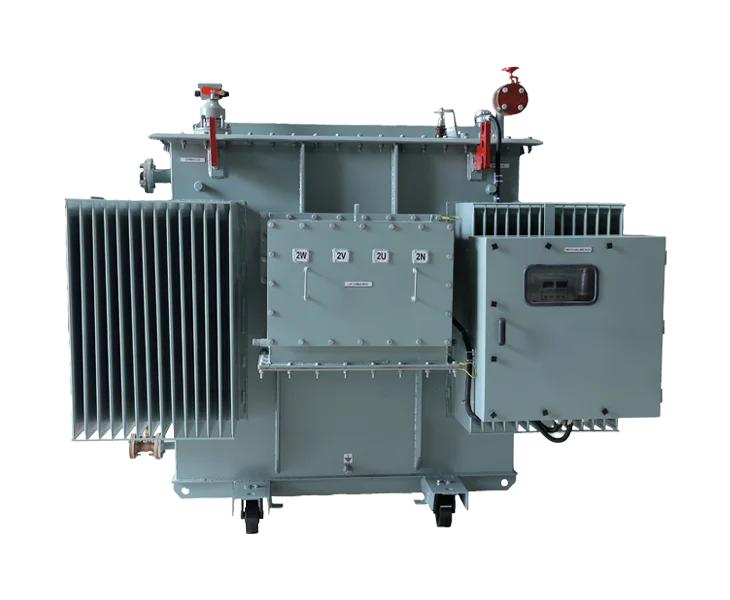

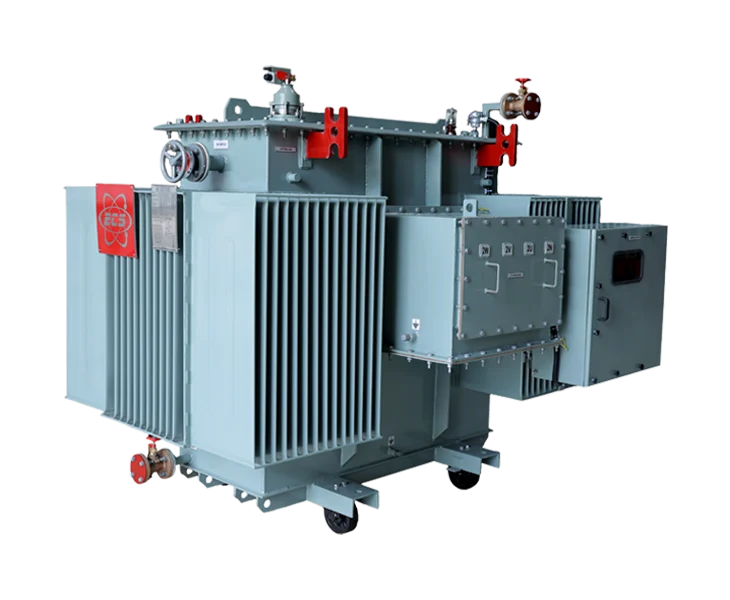

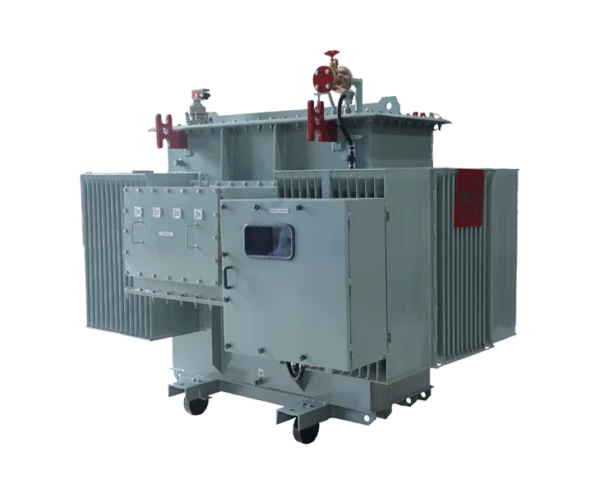

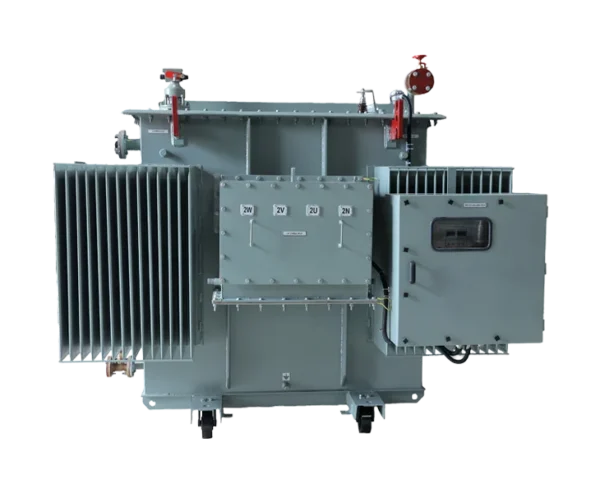

ECS Oil Cooled Transformers are purpose-built for demanding renewable energy and industrial applications. Designed to deliver reliable power transformation, these transformers comply with Indian and international standards, ensuring safety, performance, and long service life.

With robust harmonic resistance, optimized flux density, and low current density, they minimize losses, reduce overheating, and ensure stable grid integration for solar and wind projects.

Key Features

Specially designed for grid-connected solar and wind energy systems

Designed to ensure excellent mechanical and electrical integrity

Ensures thermal stability and extended operational life

Applications

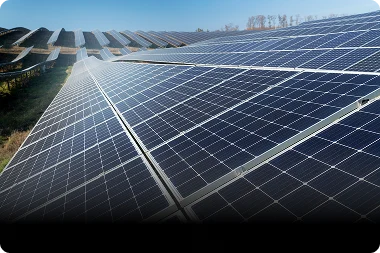

Utility-scale Solar Power Projects

Wind Energy Farms and Renewable Power Stations

Inverter-based Power Conversion Units (PCUs)

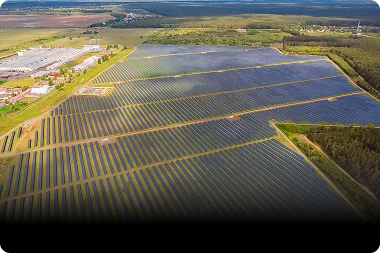

Grid-connected renewable energy systems

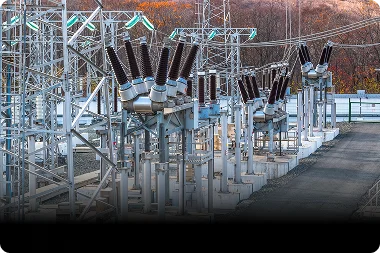

Industrial setups requiring harmonic-resistant transformers

Projects requiring safe and efficient high-voltage transformation in renewable energy integration

Technical Specifications

Parameter	Value
Power Range	Up to 70 MVA
Voltage Class	Up to 132 kV
Construction	Two-winding to Five-winding configurations
Winding Material	Electrolite Copper or Aluminium
Design Standard	Complies with Indian and International standards for quality and safety
Applicable Standard	Complies with IS, IEC, IEEE and CBIP standards
Connection Interfaces	HV & LV Outdoor Bushings Cable Boxes Bus Ducts / Bus Bar Risers
Design Standards	Low flux density to reduce harmonics, inrush current and noise level Low current density to reduce copper losses Robust mechanical arrangement to withstand cyclic loads and variation of temperature Cooling: ONAW / ONAF / KNAN / KNAF / OFWF Power Transformers (step-up and step-down) Inverter duty copper and aluminium winding Suitable for renewable energy generation Multipulse up to 24 Extended delta Isolation transformers Earthing transformers Furnace transformers Auto transformers
