Overview

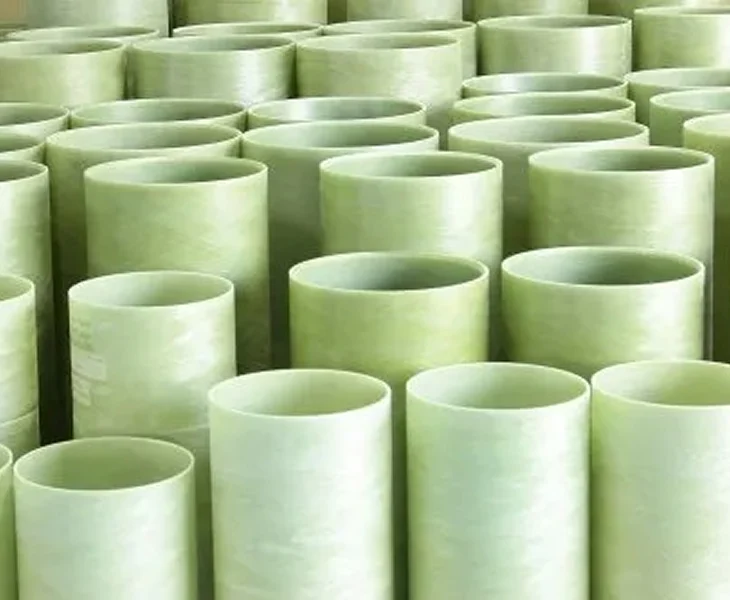

Our Filament Wound Tubes are manufactured in a modern, dedicated facility equipped with the latest filament winding technology. Designed for circuit breaker and medium-voltage switchgear applications, these tubes deliver exceptional mechanical strength, excellent electrical insulation, and long-term stability. With automated CNC winding systems and controlled curing processes, we ensure each tube meets the highest quality and performance standards required in today’s electrical industry.

Key Features

Dedicated filament wound tube manufacturing facility
Automatic 2-axis CNC Filament winding machine with 10 spindles & 4 axis CNC Filament winding machine with 5 spindles
Production capability up to Ø 250 mm × 2500 mm & 6000mm long.
PLC based precision temperature controlled curing oven
Hydraulic mandrel extraction system for smooth tube removal
Vacuum resin mixing system for void-free composite structures

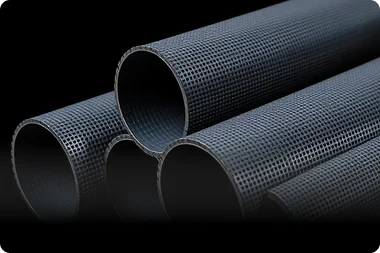

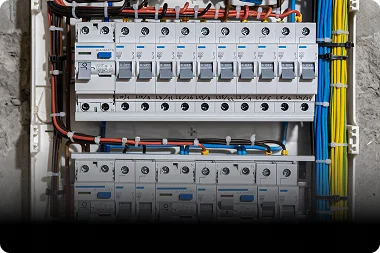

Applications

Reliable measurement. Safe design. Trusted performance.
